Kyaw Stainless is a trusted manufacturer and supplier located in Naypyidaw, Myanmar, specializing in top-notch Stainless Steel 304H Bars. These bars are crafted to provide exceptional strength, resist corrosion, and perform well under high temperatures. Using cutting-edge production methods, each bar goes through rigorous quality checks to guarantee precise dimensions and long-lasting durability. Kyaw Stainless’s Stainless Steel 304H Bars are perfect for tough industrial applications that involve heat and pressure. Thanks to their higher carbon content, these bars boast improved tensile and creep strength, making them a great fit for sectors like petrochemical, power generation, chemical processing, and marine engineering.
These Stainless Steel 304H Bars typically contain around 18–20% chromium, 8–11% nickel, and a carbon content ranging from 0.04–0.10%. They also include trace amounts of manganese, silicon, phosphorus, and sulfur, with iron making up the rest. The elevated carbon content enhances their mechanical strength and oxidation resistance at high temperatures. With a tensile strength of about 515 MPa and a yield strength of around 205 MPa, these bars also offer excellent toughness, weldability, and ductility, even in high-stress situations.
| Stainless Steel 304H Round Bar Specification | ASTMA276 / A479, ASME SA276 / A479 |
|---|---|
| Dimensions | EN, DIN, JIS, ASTM. BS, ASME, AISI |
| Size | 14mm ~ 300mm |
| Thickness | 50 mm to 600 mm Long |
| Length | 2mm ~ 100 mm 1 to 6 Meters, Custom Cut Length |
| Form | Round, Square, Hexagonal, Rectangular |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
|---|---|---|---|---|---|---|---|---|---|---|
| 304H | min. | 0.04 | – | – | – | – | 18.0 | – | 8.0 | – |
| max. | 0.10 | 2.0 | 0.75 | 0.045 | 0.030 | 20.0 | – | 10.5 | – | |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
|---|---|---|---|---|---|
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 304H | 515 | 205 | 40 | 92 | 201 |
Contact us to get a quick quote for your requirement.
Stainless Steel 304 Flanges find extensive applications in piping systems, heat exchangers, pressure vessels, and structural frameworks due to their superior corrosion resistance, strength, and durability. They are a critical component in industries including oil and gas, chemical processing, power generation, water treatment, and food processing due to their provision of safe, leak-proof connections in high-temperature and high-pressure applications. These flanges also find application in marine, pharmaceutical, and HVAC environments, offering consistent performance in fluid transport and mechanical applications. They are suited for use in oxidation-resistant applications and industrial and commercial construction projects calling for long-term stability.

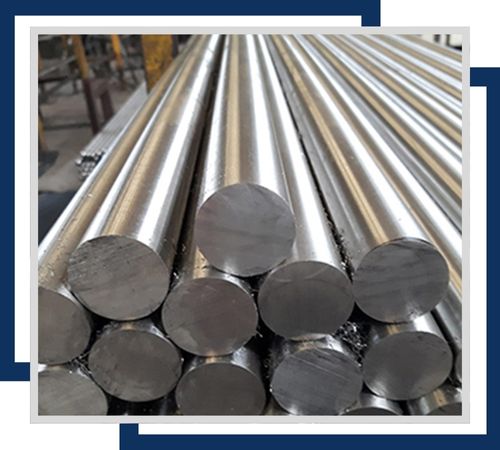

High-temperature applications, available in diameters ranging from 6mm to 500mm. These bars provide excellent strength and durability, perfect for use in pressure vessels and industrial boilers.

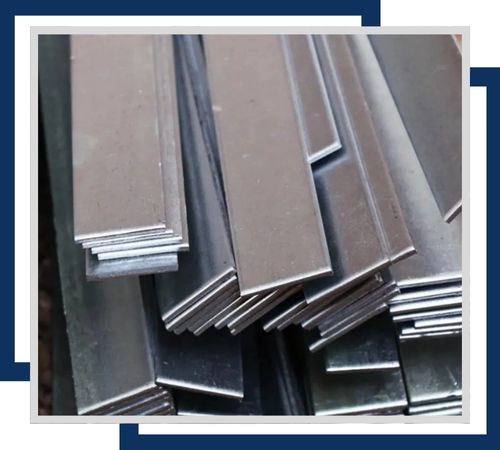

Enhanced heat resistance and are available in thicknesses from 3mm to 100mm, and widths from 12mm to 300mm. Suitable for construction, automotive, and industrial applications requiring high strength and thermal stability.

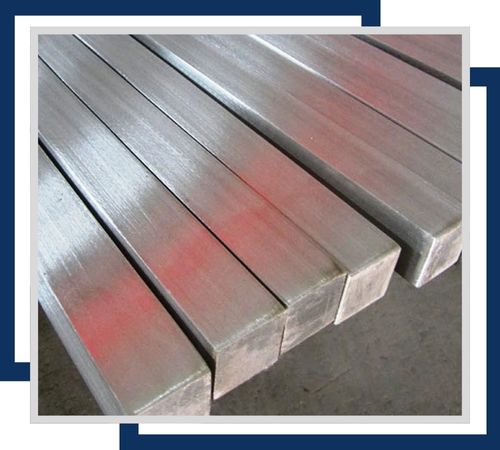

Excellent mechanical properties, available in sizes ranging from 6mm to 150mm. Ideal for use in structural and architectural applications where high strength and heat resistance are essential.

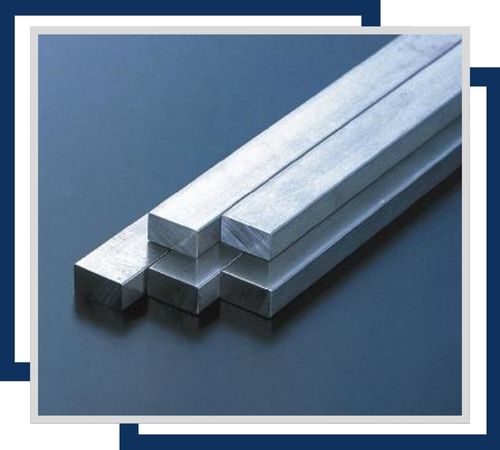

Used in construction and industrial applications, available in thicknesses from 3mm to 100mm, and widths from 10mm to 200mm. These bars offer superior durability and heat resistance for demanding environments.

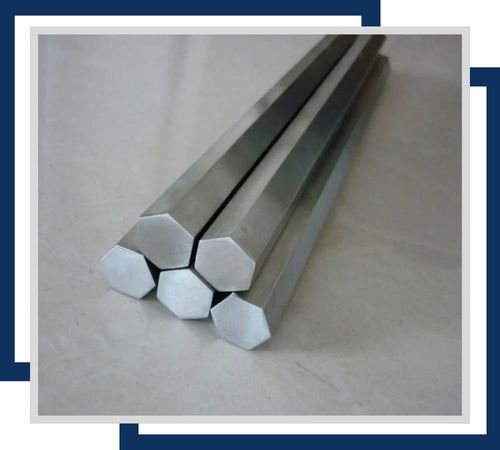

Perfect for use in fasteners and fittings, available in sizes from 6mm to 100mm across flats. They provide high strength and excellent resistance to high temperatures, making them ideal for industrial applications.

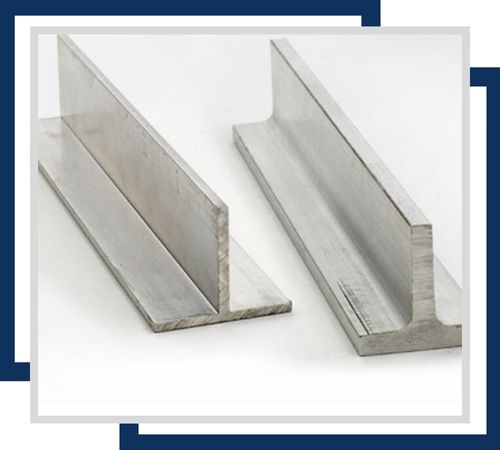

Excellent structural support, available in sizes from 20mm to 100mm in width. These bars are suitable for construction and architectural applications, providing high strength and thermal stability.
You’ll find Stainless Steel 304H Bars commonly used in heat exchangers, boilers, pressure vessels, refineries, and equipment for power plants. Their ability to maintain mechanical properties and resist scaling at temperatures up to 870°C makes them ideal for high-temperature applications. They’re also utilized in industrial furnaces, condensers, and piping systems where durability and corrosion resistance are essential. With outstanding high-temperature strength, oxidation resistance, and ease of fabrication, Stainless Steel 304H Bars deliver reliable performance and longevity in demanding industrial settings.
