Stainless Steel 316L Bars are composed of chromium (16–18%), nickel (10–14%), and molybdenum (2–3%), with a maximum carbon content of just 0.03%. This unique blend ensures outstanding corrosion resistance and reduces carbide precipitation during welding. The alloy boasts a tensile strength of around 485 MPa, a yield strength of 170 MPa, and an elongation of 40%, which guarantees high ductility and formability. With a hardness of about 80 HRB, 316L maintains its mechanical stability and durability, proving reliable in corrosive, high-temperature, and marine settings.
| Specification | EN 10272, EN 10088-3 Grade 1.4404 |
|---|---|
| Standard | GB, UNS, AISI, SUS, API, ASME, ASTM, DIN, EN |
| Sizes | 3mm to 800mm diameter |
| Length |
|
| Finish | Centreless Ground, Bright, Rough Turned, Black, Peeled, Bright Drawn, Polished, Smooth Turned, Annealed, Grinding, Cold Drawn Turned |
| Tolerances | K10, H10, H11, H8, H13, K12, K9, K11, H12, H9 |
| Surface Finish | HL, BA, NO.4, 1D, 8K, 2D, NO.3, NO.1, 2B |
| Production Method | Rolled / Forged |
| Characteristics |
|
| Value Added Services at Suraj Metal |
|

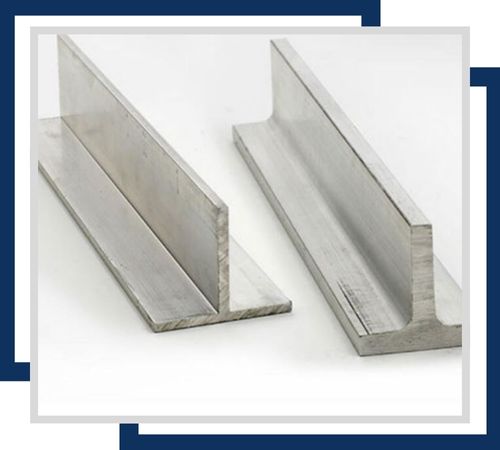

| Other available forms | T-Bar, Rod, Profiles, Forging,. Blocks, Billet, Ingot, Angle, Rectangle, Half-Round, I/H, Rounds, Precision-Ground, Triangle, Threaded, Hollow, Channel |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 316L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.89 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.
Excellent corrosion resistance and low carbon content, making them ideal for use in marine environments, chemical processing, and pharmaceutical industries. Their low carbon content improves weldability and reduces carbide precipitation.
Superior resistance to corrosion and excellent machinability. These bars are commonly used in architectural applications, chemical processing equipment, and marine environments where durability and a smooth finish are essential.
Excellent corrosion resistance and strength, suitable for use in marine, chemical processing, and medical applications. Their low carbon content enhances their resistance to localized corrosion and improves weldability.
Designed for applications requiring exceptional corrosion resistance and high strength. They are commonly used in the food processing, pharmaceutical, and marine industries, where reliability and resistance to harsh environments are crucial.
Excellent corrosion resistance and durability, making them suitable for use in chemical processing, marine applications, and manufacturing of precision components. Their low carbon content ensures enhanced weldability and resistance to pitting.
Used in environments where superior corrosion resistance and strength are required. Ideal for structural applications, chemical processing equipment, and marine components, these bars offer durability and performance with improved weldability.
Stainless Steel 316L Bars find extensive applications in the chemical processing, petrochemical, marine, and food industries, thanks to their superior corrosion resistance and mechanical strength. They are ideal for constructing heat exchangers, pressure vessels, pharmaceutical equipment, and architectural structures that face harsh conditions. Their low carbon content enhances weldability and reduces the risk of intergranular corrosion. Moreover, 316L bars are commonly used in marine components, the paper and pulp industries, and medical instruments, where hygiene, durability, and resistance to aggressive environments are crucial.
