Home > Pipe Fittings > Stainless Steel 304H Pipe Fittings
Kyaw Stainless, a trusted manufacturer and supplier based in Naypyidaw, Myanmar, offers premium-quality Stainless Steel 304H Pipe Fittings designed for exceptional strength, durability, and high-temperature performance. Manufactured using superior raw materials and advanced technology, these fittings meet international standards for quality and precision. Stainless Steel 304H, the high-carbon version of 304, offers enhanced tensile strength and creep resistance, making it ideal for applications involving elevated temperatures. Kyaw Stainless provides a wide range of 304H pipe fittings, including elbows, tees, reducers, and caps, catering to the needs of industries such as petrochemical, power generation, and marine engineering.
Stainless Steel 304H Pipe Fittings are composed of chromium (18–20%), nickel (8–12%), and carbon (0.04–0.10%), along with minor additions of manganese (≤2%), silicon (≤1%), phosphorus (≤0.045%), and sulfur (≤0.03%). The higher carbon content improves mechanical strength and thermal stability while maintaining corrosion and oxidation resistance. These fittings exhibit a tensile strength of about 515 MPa, yield strength of 205 MPa, and elongation of 40%. They retain excellent toughness, hardness, and ductility, ensuring reliable performance under continuous service temperatures up to 870°C.
| Grades | 201, 202, 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L |
| Type | Seamless / Welded / Fabricated |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Size | ½”NB to 48″NB in |
| Schedule | Sch 10s, 40s, 80s, 160s, XXS. |
| Dimensions | ANSI/ASME B16.9, B16.28, MSS-SP-43. |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 304H | 0.10 max | 2.0 max | 0.75 max | 0.045 max | 0.03 max | 18 – 20 | – | 8 – 10.5 | – |
| Density | 8.0 g/cm3 |
| Melting Point | 1400 °C (2550 °F) |
| Tensile Strength | Psi – 75000 , MPa – 515 |
| Yield Strength (0.2%Offset) | Psi – 30000 , MPa – 205 |
| Elongation | 35 % |
Contact us to get a quick quote for your requirement.
Stainless Steel 304H Pipe Fittings consist of carbon (0.04-0.10%), chromium (18-20%), nickel (8-11%), manganese (≤2%), silicon (≤1%), phosphorus (≤0.045%), and sulfur (≤0.03%), offering improved high-temperature strength and corrosion resistance. Their mechanical properties are tensile strength of ≥515 MPa, yield strength of ≥205 MPa, elongation of ≥40%, and hardness of ≤201 Brinell (HB). The physical characteristics include a density of 8.0 g/cm³, melting point of 1400-1450°C, thermal conductivity of 16.2 W/m·K, and electrical resistivity of 720 nΩ·m, which suit them for high–pressure and heat–intensive applications.

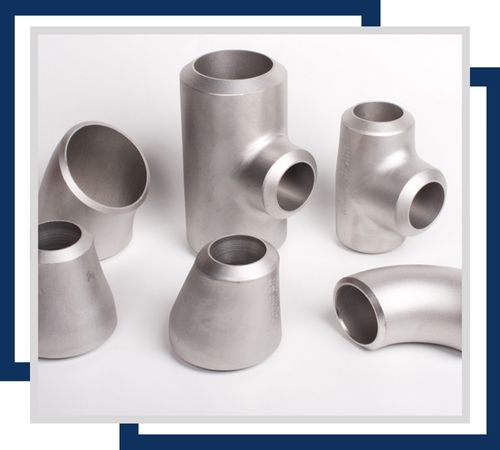

high-strength components designed for high-temperature and high-pressure applications. They offer excellent corrosion resistance and durability, making them suitable for demanding industrial and chemical environments.

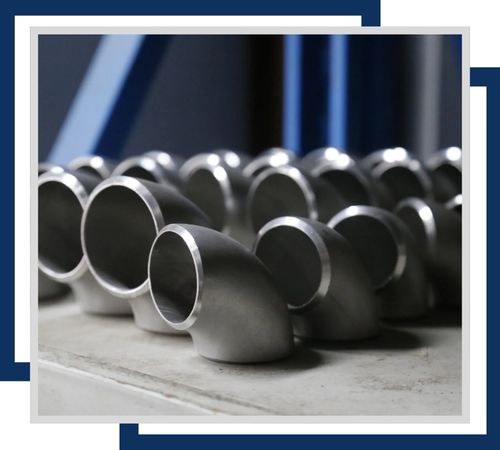

Designed to connect pipes by welding their ends together. They provide strong, durable joints with excellent corrosion resistance for high-temperature applications.

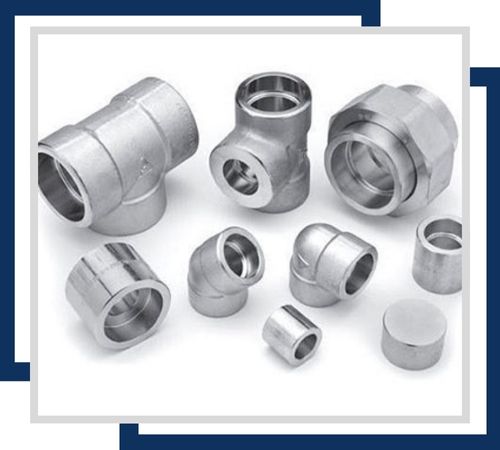

Stainless steel components that connect pipes by fitting them into a socket and welding around the joint. They ensure strong, leak-proof connections in high-temperature applications.

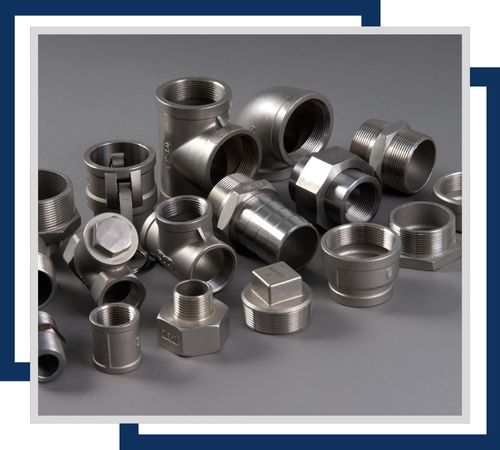

High-strength, corrosion-resistant components manufactured without welds. They provide uniformity and reliability, making them ideal for high-pressure and high-temperature applications in industrial systems.

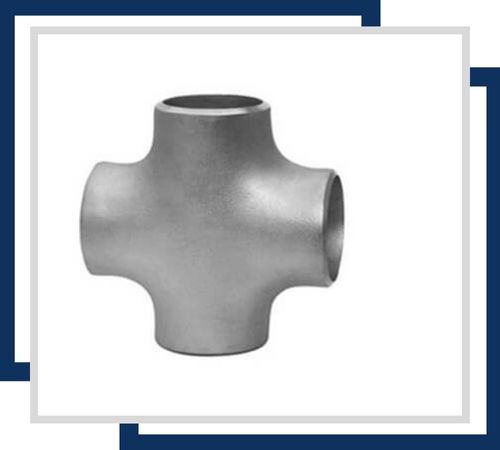

Designed to connect four pipes at a cross-shaped junction. It offers durability, strength, and excellent corrosion resistance, suitable for high-pressure and high-temperature applications.

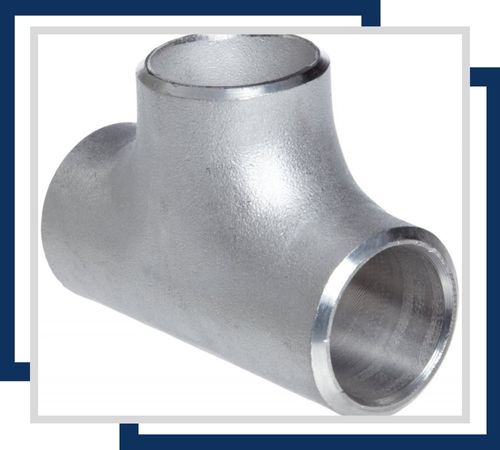

Designed to join three pipes at a T-shaped junction. They offer high strength, durability, and excellent corrosion resistance, making them ideal for high-pressure and high-temperature applications.
Stainless Steel 304H Pipe Fittings are widely used in industries that demand high-temperature and high-pressure resistance. They are ideal for use in boilers, heat exchangers, superheaters, and pressure vessels. These fittings are also commonly applied in refineries, petrochemical plants, power stations, and thermal processing units where both strength and corrosion resistance are critical. Additionally, they are suitable for marine and structural applications exposed to harsh environments. With superior weldability, durability, and resistance to scaling, Stainless Steel 304H Pipe Fittings provide long-lasting performance and reliability in demanding industrial operations.
