Renowned for creating premium stainless steel goods that satisfy global standards, Kyaw Stainless is a manufacturer and supplier with headquarters in Naypyidaw, Myanmar. Its premium products, such as Stainless Steel 316Ti Flanges, are prized for their remarkable mechanical strength, heat stability, and resistance to corrosion. Precision engineering and sophisticated processes are used in the manufacturing of these flanges to guarantee their dependability and durability in challenging conditions. Kyaw Stainless’s 316Ti flanges are made to offer safe and waterproof connections in pipe systems, and they are used in a variety of industries in Myanmar and abroad, such as the food processing, power generation, chemical processing, and marine sectors.
316Ti flanges are titanium-stabilized versions of 316 grade stainless steel, which is primarily made up of iron, molybdenum (2–3%), nickel (10–14%), chromium (16–18%), and titanium (0.5%). Titanium increases stability at high temperatures and strengthens resistance to intergranular corrosion. Excellent tensile strength (515 MPa minimum), yield strength (205 MPa minimum), and approximately 40% elongation are all displayed by these flanges. While titanium offers superior mechanical integrity during extended exposure to high temperatures and oxidising environments, the molybdenum content boosts resistance to pitting and crevice corrosion.
| Specifications | ASTM A182 / ASME SA182 |
| Size | 1/8″ NB TO 48″ NB |
| Standards | ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
| Class / Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc. |
| Grades | S31803 / S32205 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61 |
| ELEMENT | MIN | MAX |
|---|---|---|
| C | – | 0.08 |
| Si | – | 0.75 |
| Mn | – | 2 |
| P | – | 0.45 |
| S | – | 0.03 |
| Cr | 16 | 18 |
| Mo | 2 | 3 |
| N | – | 0.1 |
| Fe | Balance | |
| Ni | 10 | 14 |
| Ti | 5x%(C+N) | |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1457 °C (2650 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.

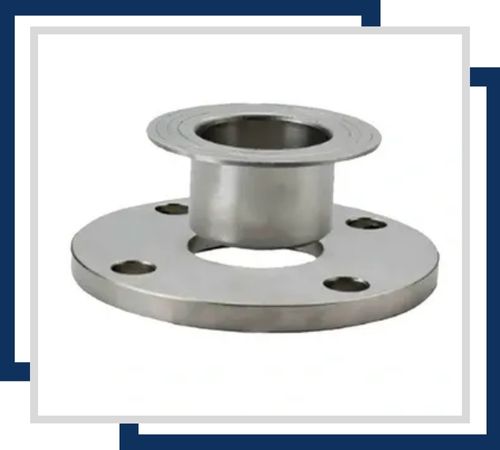

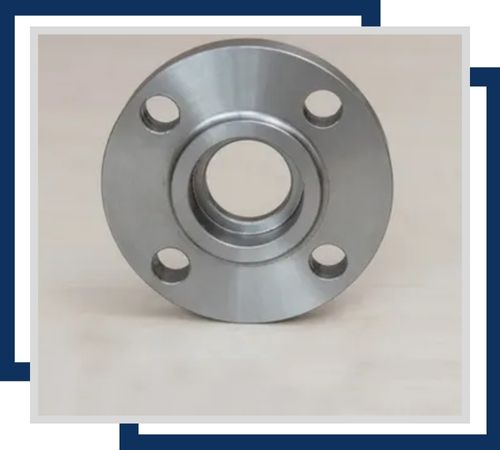

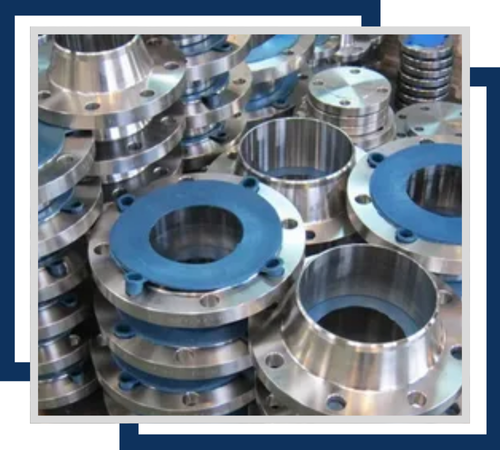

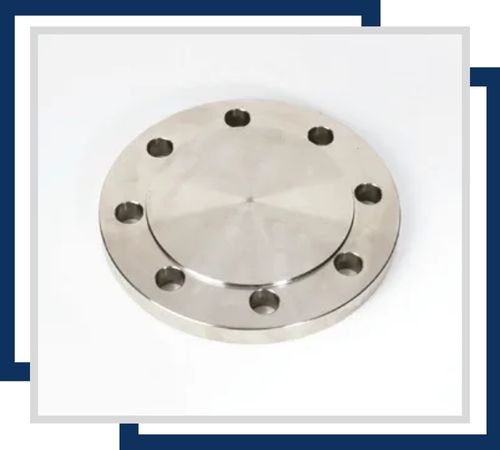

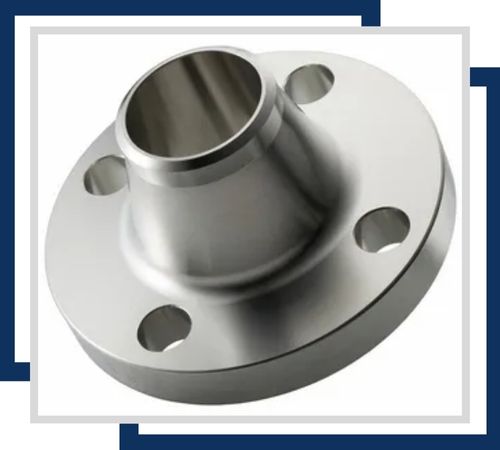

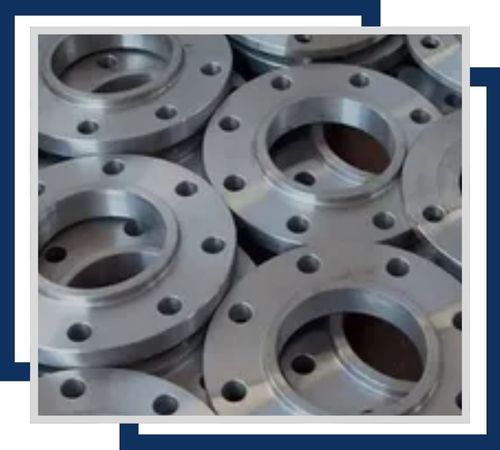

316Ti stainless steel flanges are widely used in industries where corrosion resistance and high temperature strength are essential. They are perfect for use in power generation systems, heat exchangers, marine environments, pharmaceutical equipment, food processing machinery, and chemical and petrochemical processing facilities. These flanges are appropriate for applications involving high heat and aggressive chemicals because of the titanium stabilisation, which guarantees durability and avoids sensitisation during welding. Weld neck, slip-on, blind, socket weld, and threaded flanges are among the flange types that Kyaw Stainless offers. These flanges are made to function well and last a long time under harsh industrial and environmental conditions.
Superior corrosion resistance, high strength, and durability, ideal for leak-proof connections in high-temperature, chemical, and industrial piping systems.
Excellent corrosion resistance, high strength, and durability, ensuring leak-proof connections in high-pressure piping systems across chemical, marine, and industrial sectors.
Excellent corrosion resistance, high strength, and easy assembly, making them ideal for piping systems in chemical, marine, and industrial applications.
Stainless Steel 316Ti Flanges are supplied with test certificates such as Mill Test Certificate (EN 10204/3.1B), Third Party Inspection Report, 100% Radiography Test Report, and Raw Material Test Certificate, ensuring premium quality standards. These flanges are securely packed in wooden boxes, pallets, or bubble-wrapped cartons to prevent damage during transit. For timely and safe delivery, products are shipped through trusted logistics partners, ensuring on-time delivery worldwide.
