Kyaw Stainless is a well-respected manufacturer and supplier of **Stainless Steel 904L Flanges** based in Naypyidaw, Myanmar. They’ve built a solid reputation for providing top-notch flanges that adhere to global industry standards. With state-of-the-art production facilities and a strong dedication to quality, Kyaw Stainless specializes in 904L stainless steel flanges that are celebrated for their outstanding corrosion resistance, durability, and precise engineering. These products are crafted to perform reliably even in the toughest environments and under high pressure. As a prominent player in the stainless steel 904L flanges market in Naypyidaw, Kyaw Stainless is proud to support Myanmar’s industrial, chemical, and marine sectors with high-performance, long-lasting, and cost-effective flange solutions.
The **Stainless Steel 904L Flanges** produced by **Kyaw Stainless in Naypyidaw, Myanmar**, are made from a high-alloy austenitic stainless steel blend that includes chromium, nickel, molybdenum, and copper. This unique composition provides exceptional resistance to strong reducing acids and corrosion caused by chlorides. These flanges boast impressive mechanical properties, such as high tensile strength, toughness, and excellent weldability. Thanks to their low carbon content, 904L stainless steel minimizes carbide precipitation, ensuring superior corrosion resistance during the welding process. Kyaw Stainless guarantees that each flange undergoes thorough quality testing, making their 904L flanges perfect for demanding industrial applications throughout Myanmar.
| Standard | ASTM A182 / ASME SA182 |
| Dimensions | ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN |
| Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges |
| Size | 1/2″ (15 NB) to 48″ (1200NB) |
| Class/Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 |
| Flange Face Type | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Cu |
| SS 904L | 0.020 max | 2 max | 1.00 max | 0.040 max | 0.030 max | 19.00 – 23.00 | 4.00 – 5.00 max | 23.00 – 28.00 | 1.00 – |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.95 g/cm3 | 1350 °C (2460 °F) | Psi – 71000 , MPa – 490 | Psi – 32000 , MPa – 220 | 35 % |
Contact us to get a quick quote for your requirement.
Excellent corrosion resistance, high strength, and durability for industrial applications, ensuring reliable performance.

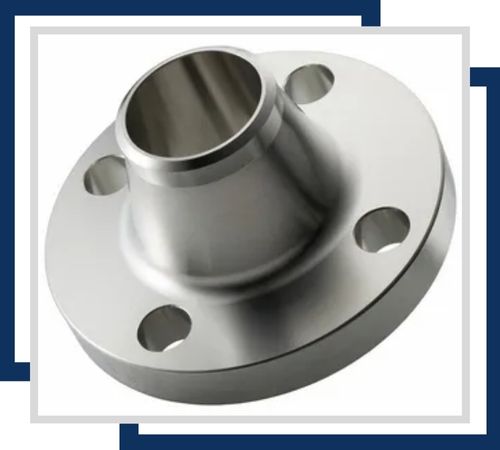

High-strength applications requiring extended weld connections. They offer exceptional corrosion resistance and structural integrity, making them suitable for demanding industrial environments.

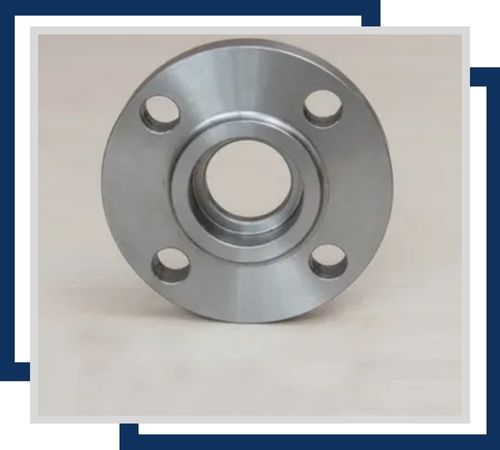

Designed for flexibility and ease of assembly, featuring excellent corrosion resistance and strength. Their superior durability makes them ideal for applications in aggressive environments and high-pressure systems.

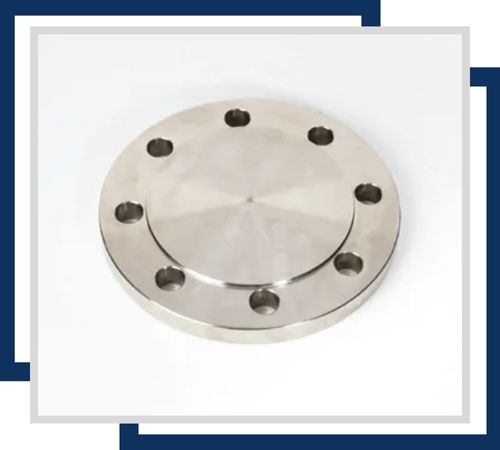

Strong corrosion resistance, high durability, and are ideal for sealing pipe ends in demanding environments.
Stainless Steel 904L Flanges are extensively utilized in applications with higher corrosion resistance needs, e.g., chemical processing, offshore, and marine industries. They find application in heat exchangers, power stations, and drug equipment, where resistance to acetic, phosphoric, and sulfuric acids is vital. They are also used in seawater desalination plants, food processing and paper and pulp industries because of their non-reactive character and high resistance to wear and tear. Their fine mechanical properties and resistance to chloride stress corrosion cracking make them an ideal choice for critical industrial use.
As the leading **Stainless Steel 904L Flanges manufacturer and supplier in Naypyidaw, Myanmar**, **Kyaw Stainless** offers products that are widely utilized across various sectors, including chemical processing, oil and gas, power generation, marine engineering, and pharmaceuticals. Their 904L flanges are ideal for piping systems that deal with corrosive fluids, high pressures, and extreme temperatures. They provide leak-proof, durable, and stable connections for critical operations. With excellent resistance to pitting, crevice corrosion, and stress cracking, these flanges are designed for long-term performance.
