Excellent weldability, oxidation resistance, and thermal stability, ideal for heat exchangers, exhaust systems, and industrial applications.
Kyaw Stainless is a reputable manufacturer and supplier based in Naypyidaw, Myanmar, specializing in high-quality Stainless Steel 405 Tubing. With a strong commitment to precision, durability, and customer satisfaction, Kyaw Stainless offers tubing solutions that not only meet global quality standards but also cater to a wide range of industrial needs. Thanks to their advanced technology and a dedicated team of professionals, the company produces tubing products renowned for their outstanding corrosion resistance and strength. Kyaw Stainless plays a vital role in supporting Myanmar’s industrial growth by providing top-notch stainless steel products for various engineering applications.
Stainless Steel 405 Tubing primarily consists of iron, with 11.5–13% chromium and trace amounts of aluminum to enhance oxidation and corrosion resistance. This ferritic stainless steel grade is known for its good ductility, moderate strength, and excellent scaling resistance at high temperatures. With a tensile strength between 380–550 MPa, the tubing maintains its mechanical stability even under heat and pressure. Its lower hardenability makes it easier to fabricate and weld, making it a cost-effective option for applications that require both strength and thermal stability in challenging environments.
| Description | ASTM A240 / ASME SA240 Stainless Steel Plates, ASTM A240 Hot Rolled Stainless Steel Plates |
| Standard | ASTM, ASME, BS, DIN, EN |
| Material | 310S, 310, 309, 309S, 316, 316L, 316Ti, 317, 317L, 321, 321H, 347, 347H, 304, 304L, |
| 302, 301, 201, 202, 403, 405, 409, 409L, 410, 410S, 420, 430, 631, 904L, Duplex, etc | |
| Specification | Cold rolled: 1219mm * 2438mm (4′ x 8′), 1219mm * 3048mm (4′ x 10′), 1220mm * 2440mm, 1250mm * 2500mm or as your requirement.
Hot rolled: 1500mm * 2000mm, 1000mm * 3000mm, 1500mm * 4000mm, 1500m * 6000mm or as your requiremnt. |
| Technique | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Form | Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Etc. |
| Surface | 2B, 2D, BA, NO. 1, NO. 4, NO.8, 8K, Mirror, Checkered, Embossed, Hair Line, Sand Blast, Brush, Etching |
| Thickness | 0.25-200mm, 0.3mm to 120mm |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, 12000mm |
| Package | Standard Export Seaworthy Package, or as required. |
| Value Added Services | Cladding,Heat Treatment,Annealed, Pickling, Polish,Rolling,Cutting,Bending,Forging,Minor Fabrication Etc. |
| MTC | Mill Test Certificate, Available as per EN 10204 3.1 |
| Element | Content (%) |
|---|---|
| Iron, Fe | 85 |
| Chromium, Cr | 13 |
| Manganese, Mn | 1.0 |
| Silicon, Si | 1.0 |
| Aluminum, Al | 0.2 |
| Carbon, C | 0.080 |
| Phosphorous, P | 0.040 |
| Sulfur, S | 0.030 |
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength | 448 MPa | 65000 psi |
| Yield strength (@strain 0.200 %/) | 276 MPa | 40000 psi |
| Elastic modulus | 200 GPa | 29007 ksi |
| Poisson’s ratio | 0.27-0.30 | 0.27-0.30 |
| Elongation at break (in 50 mm) | 25.00% | 25.00% |
| Izod Impact (@20°C/68°F) | 41.0 J | 30.2 ft-lb |
| Hardness, Brinell (converted from Rockwell B hardness) | 131 | 131 |
| Hardness, Knoop (converted from Rockwell B hardness) | 146 | 146 |
| Hardness, Rockwell B | 75 | 75 |
| Hardness, Vickers (converted from Rockwell B hardness) | 140 | 140 |
Contact us to get a quick quote for your requirement.
Stainless Steel 405 Tubing finds extensive application in steam turbine parts, heat exchangers, and exhaust systems, where resistance to high temperatures and oxidation are critical. It is also used in chemical processing plant equipment, furnace parts, and welded products to provide durability and stability under thermal stress. It is also used in marine, food processing, and petroleum refining applications, providing great corrosion resistance and structural strength. Its improved machinability and lower hardening properties qualify it for use in structural frames, automotive parts, and industrial piping systems, providing a cost-efficient and effective solution.

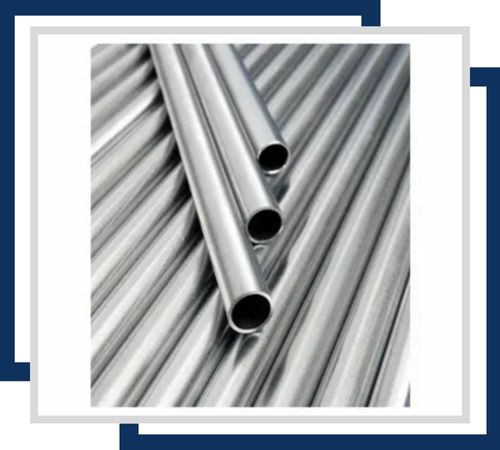

Manufactured without welding, this tubing offers superior structural integrity and reliability. Commonly available in sizes ranging from 1/8″ to 2″ in diameter. It has moderate corrosion resistance suitable for many applications.

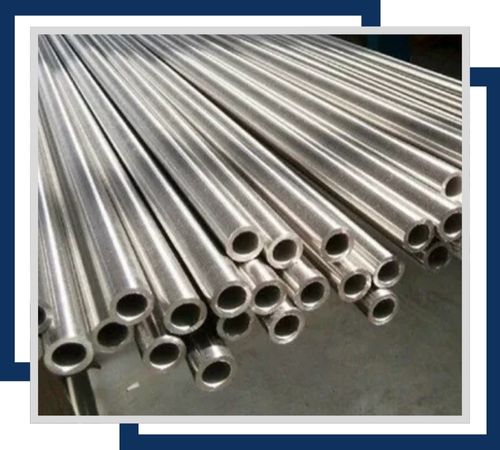

Produced by welding a flat steel strip into a tubular shape, this type is typically available in sizes from 1/4″ to 6″ in diameter. It has good resistance to oxidation and is used where cost-efficiency is essential.

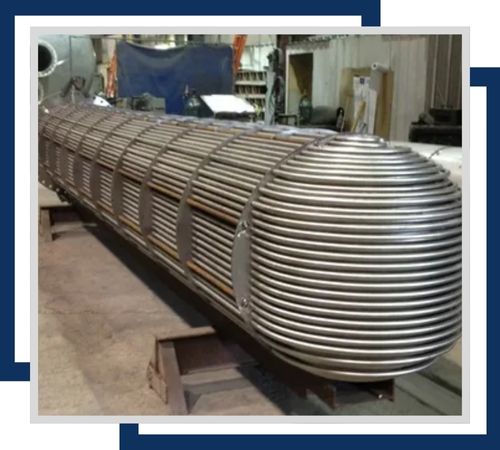

Designed specifically for heat exchanger applications, these tubes are available in diameters from 1/2″ to 2″. They provide good resistance to scaling and oxidation at high temperatures.

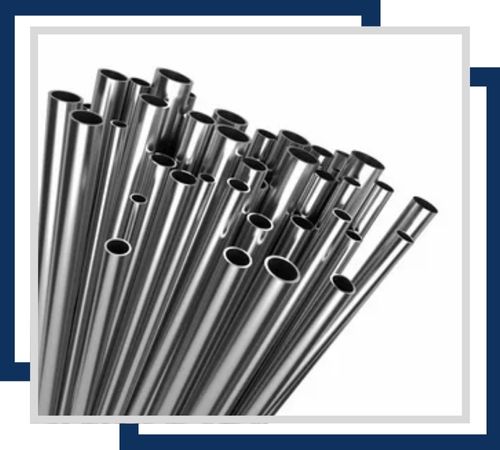

Precision-made for instrumentation purposes, this tubing usually comes in sizes from 1/16″ to 1″ in diameter. It offers excellent resistance to corrosion and is ideal for high-pressure applications.

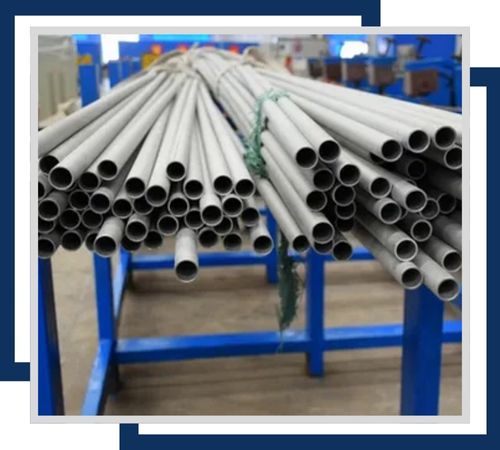

Ideal for boiler systems, these tubes are typically found in sizes from 1″ to 3″ in diameter. They are designed to handle high temperatures and pressures, with good resistance to corrosion.
Excellent weldability, oxidation resistance, and thermal stability, ideal for heat exchangers, exhaust systems, and industrial applications.
Used in condenser units, these tubes are generally available in diameters from 1/2″ to 2″. They offer excellent resistance to corrosion and high temperatures, making them suitable for various thermal applications.
These tubes feature fins attached to increase surface area for heat transfer. They are typically available in diameters from 1/2″ to 2″. They offer good corrosion resistance and are used in heat exchangers and radiators.
Kyaw Stainless’s Stainless Steel 405 Tubing is widely used in industries that require materials resistant to heat and corrosion. It’s commonly found in automotive exhaust systems, heat exchangers, steam nozzles, and petrochemical equipment due to its remarkable resistance to oxidation and scaling. In construction and infrastructure, this tubing delivers long-lasting performance in various environmental conditions. Its strength and stability make it perfect for power plants, refinery systems, and marine applications. With Kyaw Stainless’s 405 tubing, you can count on reliable performance in both high-temperature and mildly corrosive service environments.
