Based in Naypyidaw, Myanmar, Kyaw Stainless is a well-known manufacturer and supplier of high-quality stainless steel products that are constructed to satisfy global standards. Stainless Steel 316/316L Sheets and Plates are among its most popular products because of their remarkable strength, durability, and resistance to corrosion. These sheets and plates, which are made with precision processing and cutting-edge technology, function dependably even in corrosive and harsh environments. Kyaw Stainless is a reputable supplier for customers in Myanmar and abroad because of its dedication to providing premium stainless steel solutions for commercial, architectural, and industrial applications.
Iron, chromium (16–18%), nickel (10–14%), and molybdenum (2–3%) make up the majority of stainless steel 316/316L sheets and plates, with 316L being the low-carbon variety. Particularly in chloride-rich and marine environments, this composition offers exceptional resistance to pitting, crevice corrosion, and oxidation. The materials have an elongation of roughly 40%, a yield strength of 205 MPa, and a minimum tensile strength of 515 MPa. Both grades retain exceptional mechanical stability at high temperatures and pressures, while 316L’s low carbon content enhances weldability and inhibits carbide precipitation.
| Standard | ASTM A240, ASME SA240 |
| Thickness | 0.1mm to 12 mm Thk |
| Sheet and Plate Size | 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm |
| Surface | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sandblast, Brush, etching. |
| Finish | Hot rolled (HR), Cold rolled (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated). |
|
Grade |
C |
Mn |
Si |
P |
S |
Cr |
Mo |
Ni |
N |
|
|
316 |
Min |
– |
– |
– |
0 |
– |
16.0 |
2.00 |
10.0 |
– |
|
Max |
0.08 |
2.0 |
0.75 |
0.045 |
0.03 |
18.0 |
3.00 |
14.0 |
0.10 |
|
|
316L |
Min |
– |
– |
– |
– |
– |
16.0 |
2.00 |
10.0 |
– |
|
Max |
0.03 |
2.0 |
0.75 |
0.045 |
0.03 |
18.0 |
3.00 |
14.0 |
0.10 |
|
ade |
Tensile Str
(MPa) min |
Yield Str
0.2% Proof
(MPa) min |
Elong
(% in 50mm) min |
Hardness |
|
|
Rockwell B (HR B) max |
Brinell (HB) max |
||||
|
316 |
515 |
205 |
40 |
95 |
217 |
|
316L |
485 |
170 |
40 |
95 |
217 |
Contact us to get a quick quote for your requirement.

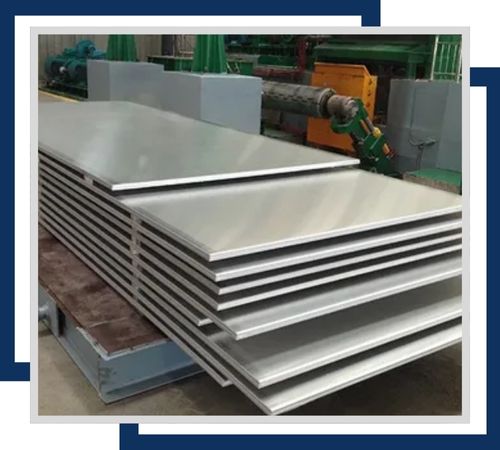

Great plates for numerous applications due to excellent corrosion resistance. The hot rolled plates available vary in size, from 4mm up to 150mm in thickness, and from 2000mm in width.

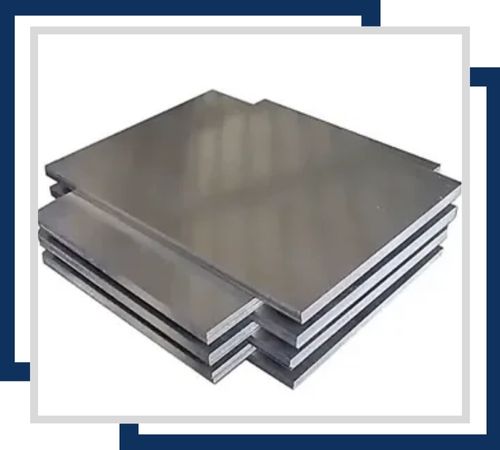

High corrosion resistance. The sheets come in thickness from 0.3mm to 6mm and width up to 2000mm. These sheets offer a smooth finish and are used in applications where precision and aesthetic appeal are required.

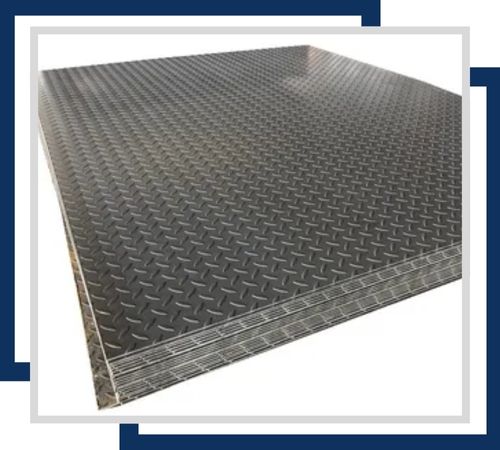

Diamond pattern that gives it a better grip and less slipping. The thicknesses of the sheets are from 3mm to 8mm, and sizes are up to 1500mm x 3000mm for flooring and walkways.

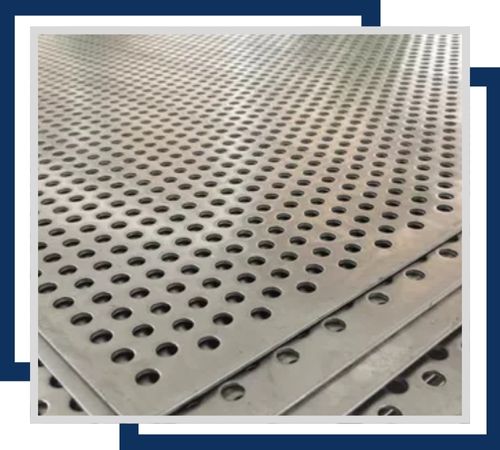

Superior corrosion resistance. The products are available in different thicknesses of 0.4mm to 12mm with a range of hole sizes and patterns, suitable for several industrial applications in filtration and ventilation.

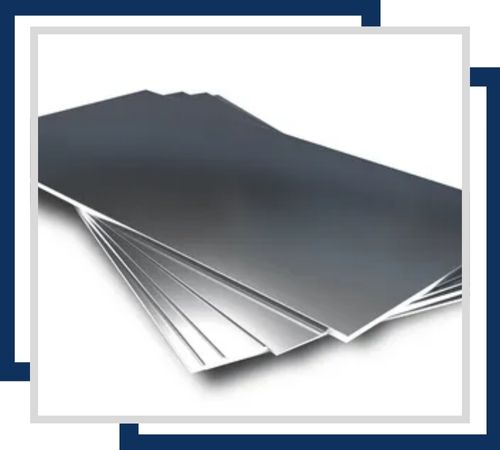

Very thin material, very sharp, corrosion resisting, with many applications for spacers and other alignment needs in machinery and structurals from 0.05mm up to 3mm with cut options by specific size or width.

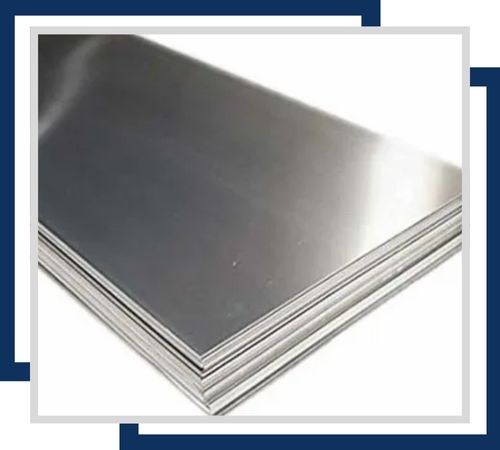

High corrosion resistance along with a bright mirror finish. The plates come in a variety of thickness, from 0.5mm to 50mm, and sizes up to 2000mm x 6000mm for decorative purposes, architectural applications, and other heavy industrial uses.
316/316L stainless steel sheets and plates are widely used in industries that demand exceptional strength and resistance to corrosion. They are perfect for use in heat exchangers, pharmaceuticals, food and beverage manufacturing, marine engineering, architectural cladding, and chemical and petrochemical processing. Additionally, tanks, pressure vessels, pipelines, and medical equipment are made using these sheets and plates. For welded structures and environments with strong acids or chlorides, the low carbon version (316L) is especially well-suited. With a range of sizes, thicknesses, and finishes, Kyaw Stainless offers 316/316L sheets and plates that are reliable and long-lasting for a variety of industrial applications.
