The composition of Stainless Steel 317 Sheets and Plates primarily includes chromium, nickel, and molybdenum, along with small amounts of manganese, silicon, and carbon. This alloy typically features 18–20% chromium, 11–15% nickel, and 3–4% molybdenum, which enhances its resistance to pitting and crevice corrosion. On the mechanical side, it boasts a tensile strength of about 515 MPa, a yield strength of 205 MPa, and impressive elongation and hardness. These characteristics make it an excellent choice for applications that require both mechanical strength and resistance to harsh chemical environments.
Specifications: ASTM A240 / ASME SA240
Dimensions: ASTM, ASME, and API.
Width: 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Thickness:4mm-100mm
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Surface Finish: 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, chequered, embossed, hairline, sand blast, Brush, etching, Hot rolled plate (HR), Cold rolled sheet (CR), SATIN (Met with Plastic Coated) etc
Form: Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.
|
Grade |
C |
Mn |
Si |
P |
S |
Cr |
Mo |
Ni |
Fe |
|
SS 317 |
0.08 max |
2.0 max |
1.0 max |
0.045 max |
0.030 max |
18.00 – 20.00 |
3.00 – 4.00 |
11.00 – 15.00 |
57.845 min |
|
Density |
Melting Point |
Tensile Strength |
Yield Strength (0.2%Offset) |
Elongation |
|
7.9 g/cm3 |
1400 °C (2550 °F) |
Psi – 75000, MPa – 515 |
Psi – 30000, MPa – 205 |
35 % |
Contact us to get a quick quote for your requirement.

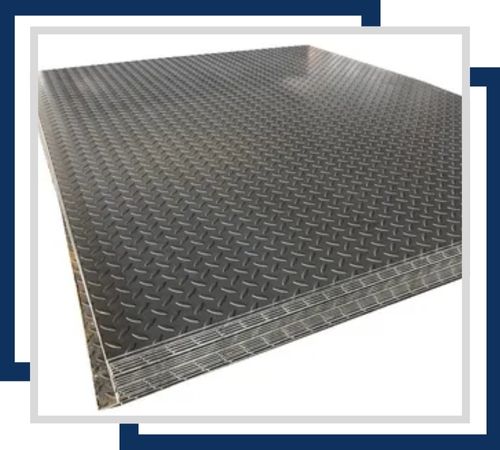

Stainless Steel 317 Chequered Sheet and Plates offer high corrosion resistance, strength, and durability, ideal for industrial flooring, ramps, stair treads, and heavy-duty structural applications.

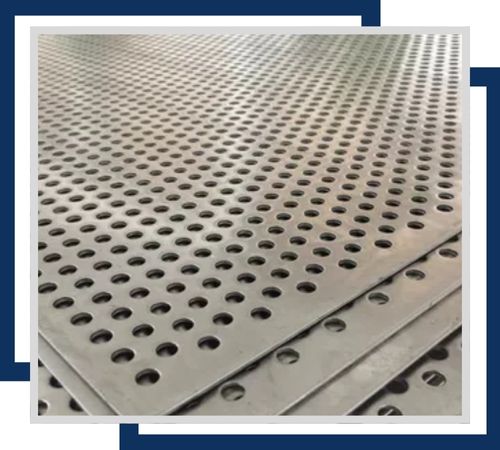

Stainless Steel 317 Perforated Sheet and Plates offer excellent corrosion resistance, high strength, and durability, ideal for chemical, marine, and industrial applications, ensuring superior performance and long service life.

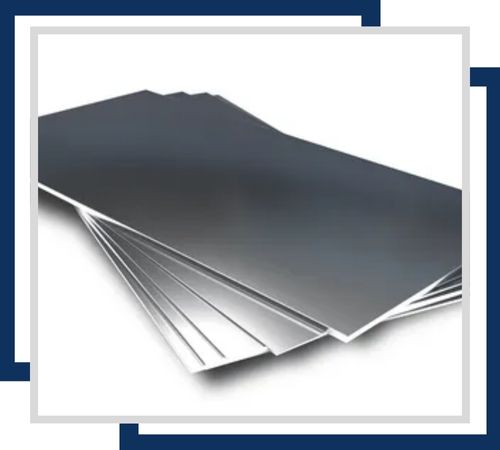

Stainless Steel 317 Shim Sheet and Plates offer high corrosion resistance, excellent strength, and durability, ideal for chemical, marine, and industrial applications, ensuring superior performance in harsh environments.

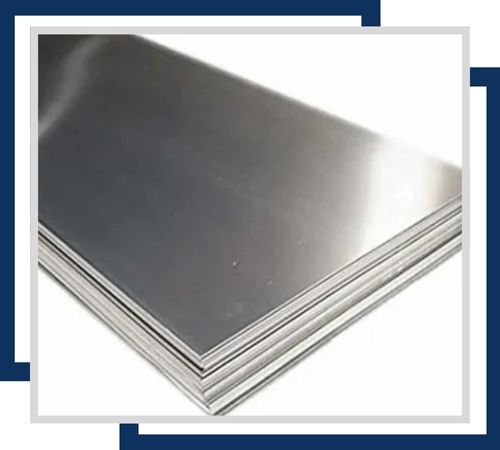

Stainless Steel 317 Polished Sheet and Plates offer superior corrosion resistance, high strength, and excellent durability, ideal for chemical, marine, and industrial applications requiring a smooth, polished finish.
Stainless Steel 317 Sheets and Plates are extensively utilized in industries where corrosion resistance and strength are crucial. They are frequently found in chemical processing equipment, marine applications, the paper and pulp industry, food processing facilities, and heat exchangers. Their ability to endure acids, chlorides, and high-temperature oxidation makes them ideal for crafting pressure vessels, condensers, and evaporators. Moreover, their durability and formability make them suitable for architectural structures, industrial storage tanks, and pharmaceutical equipment, ensuring a long service life and reliability even in tough working conditions.
Stainless Steel 317 Sheet and Plates supplied by Kyaw Stainless come with essential test certificates such as Mill Test Certificate (MTC) as per EN 10204/3.1B, Third-Party Inspection Report, Raw Material Test Report, and 100% Radiography Test Report, ensuring premium quality and compliance. The sheets and plates are securely packed in wooden pallets, waterproof wrapping, or customized packaging to avoid damage during transit, ensuring safe and prompt delivery to domestic and international clients.
