Kyaw Stainless stands as a trusted manufacturer and supplier right here in Naypyidaw, dedicated to providing industry-leading stainless steel solutions. We take pride in our expertise with Stainless Steel 304/304L Forged Fittings, components known for their exceptional reliability. Our commitment lies in delivering products that meet the highest standards of quality and durability, ensuring they perform flawlessly in the most demanding environments. We are your local partner for robust piping systems, built to last and support the growing infrastructure and industrial needs across Myanmar.
The composition of 304/304L stainless steel is a careful balance, primarily chromium and nickel, which gives it excellent corrosion resistance. The “L” grade has a lower carbon content, making it ideal for welding by preventing harmful carbide formation. Mechanically, these forged fittings are incredibly strong and durable, able to withstand high pressures and impacts. This combination of a resilient chemical makeup and superior mechanical strength ensures that our fittings provide a long-lasting, secure connection, forming the backbone of a dependable piping system.
Stainless Steel Forged Fittings Specification : ASTM A182 / ASME SA182
Dimension Standard : ASME B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, MSS-SP-97, BS3799
Size : 1/8″ NB to 4″ NB
Type : Socketweld Fittings, Screwed-Threaded Fittings (NPT or PT Type)
Rating Pressure : Threaded End – 2000 /3000/ 6000 LBS. Socket-weld End – 3000 / 6000/ 9000 LBS.
| C | Mn | Si | P | S | Cr | Ni | N | |
|---|---|---|---|---|---|---|---|---|
| 304 | 0.07max | 2.0max | 0.75max | 0.045max | 0.03max | min: 18.0 max: 20.0 | min: 8.0 max: 10.5 | — |
| 304L | 0.03max | 2.0max | 0.75max | 0.045max | 0.03max | min: 18.0 max: 20.0 | min: 8.0 max: 12.0 | 0.10 max |
| Grade | Tensile Strength ksi (min) | Yield Strength 0.2% ksi (min) | Elongation % | Hardness (Brinell) MAX | Hardness (Rockwell B) MAX |
|---|---|---|---|---|---|
| 304 | 75 | 30 | 40 | 201 | 92 |
| 304L | 70 | 25 | 40 | 201 | 92 |
Contact us to get a quick quote for your requirement.
These Stainless Steel 304/304L Forged Fittings are extensively utilized in sectors that demand superior hygiene, corrosion resistance, and strength. They are particularly well-suited for chemical and petrochemical processing plants, dairy and food processing facilities, pharmaceuticals, water supply systems, and marine applications. Their ability to resist oxidation while maintaining structural integrity under high pressure and temperature conditions makes them a go-to choice for piping systems, heat exchangers, and condensers where durability and performance are essential.

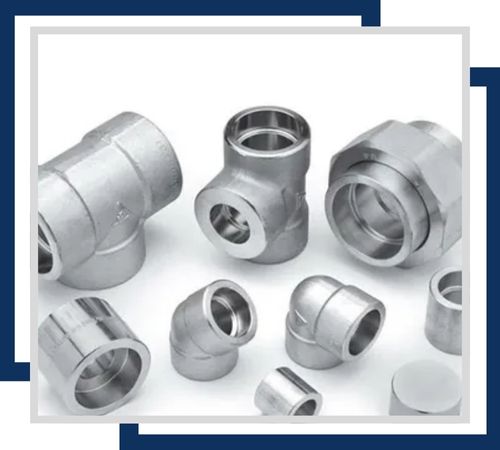

Excellent corrosion resistance, particularly against oxidation and atmospheric corrosion. Typically available in sizes ranging from ¼ inch to 4 inches, they are designed for high-pressure applications and are widely used in piping systems for their strength and durability.

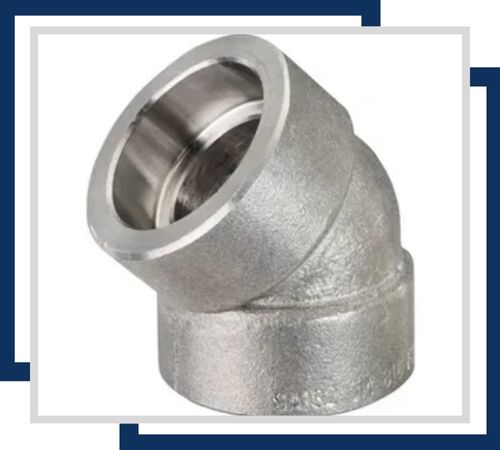

Excellent corrosion resistance, this 45-degree elbow is designed to redirect flow in a piping system. Available in sizes from ¼ inch to 4 inches, it is suitable for high-pressure and high-temperature applications, ensuring reliable and leak-proof connections.
Highly resistant to corrosion, this elbow facilitates changes in direction with a 45-degree bend. Standard sizes range from ½” to 4″ in diameter. It redirects its flow in pipelines, especially in chemical and petrochemical industries.

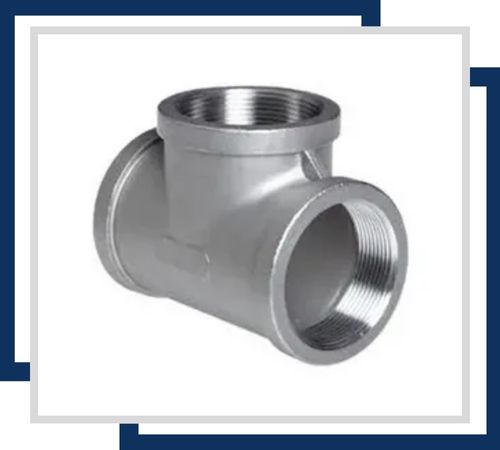

Robust corrosion resistance, this tee fitting branches off a pipeline. Available in sizes from ¼ inch to 4 inches, it allows flow distribution in three directions, making it versatile for various industrial applications.

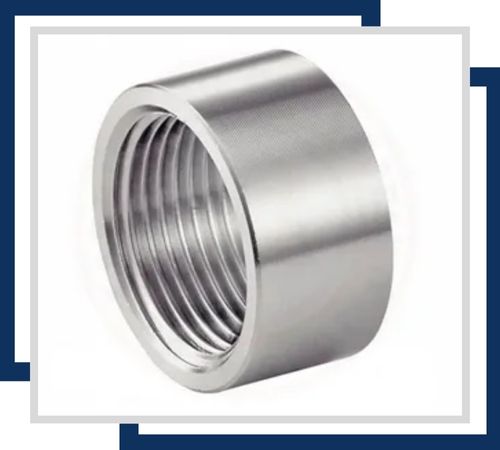

Strong corrosion resistance, this half coupling connects two pieces of pipe. Sizes range from ¼ inch to 4 inches, and it is ideal for applications requiring a reliable and secure connection in both industrial and residential settings.

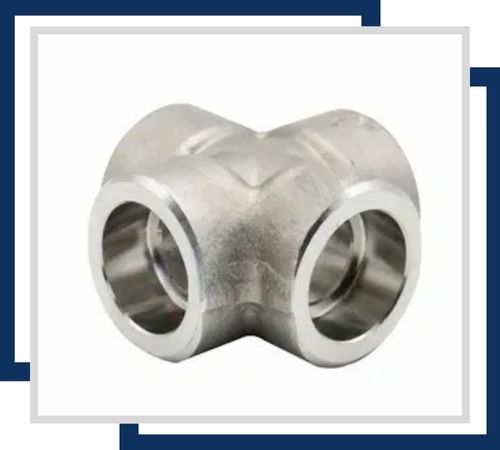

Excellent corrosion resistance, this cross-fitting allows for connecting four pipes. It is available in sizes from ¼ inch to 4 inches and is commonly used in complex piping systems requiring multiple branches.
The versatility of our 304/304L Forged Fittings makes them indispensable across many sectors. You’ll find them forming critical connections in food and beverage processing plants, pharmaceutical manufacturing, and chemical handling systems where purity and corrosion resistance are paramount. They are equally vital in architectural applications for handrails and structures, in water treatment facilities, and throughout the oil and gas industry. Essentially, wherever there’s a need for a tough, reliable, and corrosion-resistant piping component, our forged fittings are up to the task, ensuring system integrity day in and day out.
