The **Stainless Steel 316H forged fittings produced by Kyaw Stainless in Naypyidaw, Myanmar** are crafted from high-carbon austenitic stainless steel that includes molybdenum, boosting their resistance to pitting, crevice corrosion, and high-temperature oxidation. These fittings boast impressive mechanical properties, such as high tensile and yield strength, hardness, and toughness. Each fitting goes through a meticulous process of precision forging, heat treatment, and thorough testing to guarantee dimensional accuracy, a superior finish, and compliance with ASTM and international standards, ensuring they perform reliably in critical applications.
| Standard | ASTM A182 / ASME SA182 |
| Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Type | Socketweld Fittings, Screwed-Threaded Fittings |
| Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 316H | 0.10 max | 2.0 max | 0.75 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.89 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.
Stainless Steel 316H Forged Fittings are widely used in industries requiring high strength, heat resistance, and corrosion resistance. In the chemical and petrochemical sectors, they are essential for pipelines, reactors, and heat exchangers due to their durability in high-temperature environments. Power plants utilize them in boilers and pressure vessels, while oil and gas industries rely on them for offshore drilling and refineries. They are also used in marine applications, food processing, and pharmaceutical industries. Their superior weldability, strength, and ability to withstand harsh conditions make them ideal for critical industrial applications.

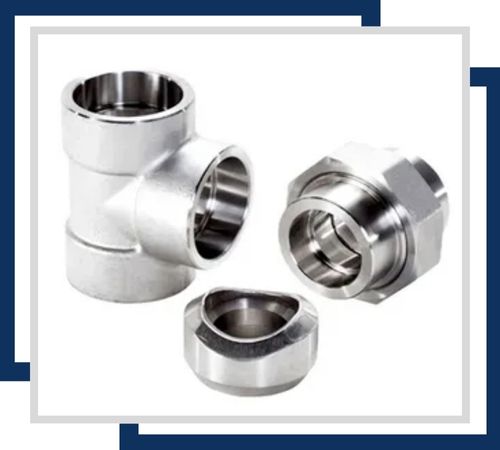

Corrosion-resistant and highly durable, Stainless Steel 316H Socket Weld Fittings are used for high-pressure applications. Sizes typically range from 1/4″ to 4″ in diameter. These fittings are designed for a strong, leak-proof connection in piping systems.
Excellent resistance to corrosion and high temperatures, Stainless Steel 316H Threaded Fittings are ideal for various industrial applications. They come in sizes from 1/8″ to 6″. These fittings provide easy installation and maintenance with threaded connections.

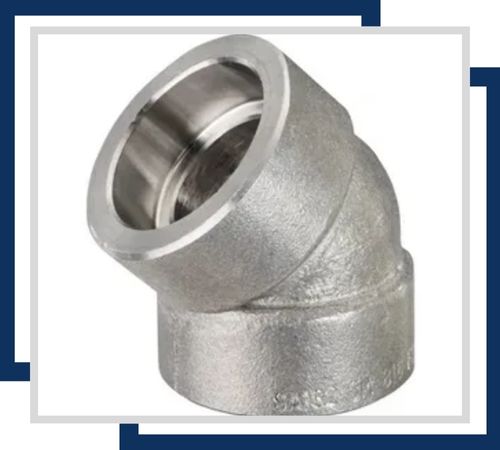

Corrosion resistance with high strength, allowing smooth changes in direction. Typically available in sizes from 1/4″ to 4″, it ensures reliable performance under high-pressure conditions.

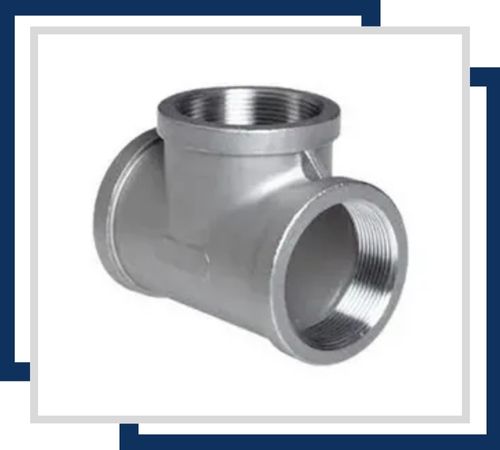

Excellent resistance to corrosion and high durability, the Stainless Steel 316H Threaded Tee is used to connect and branch pipes. Sizes generally range from 1/4″ to 6″. It facilitates fluid flow in multiple directions efficiently.

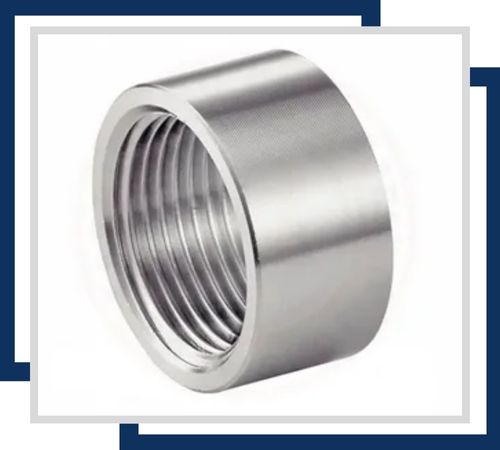

Strong corrosion resistance and is used to connect two sections of pipe. Available in sizes from 1/8″ to 4″, it offers easy installation and robust performance in various applications.

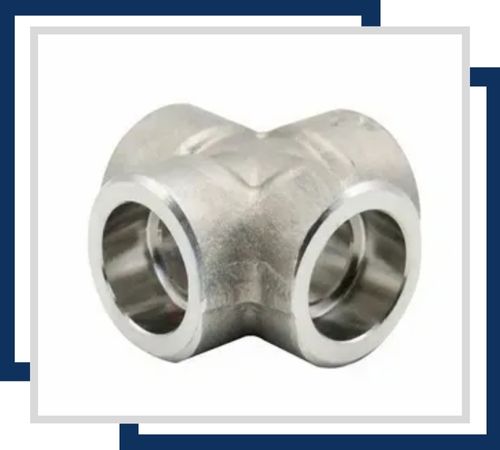

Superior corrosion resistance, the Stainless Steel 316H Socket Weld Cross is used to connect multiple pipe lines. It comes in sizes from 1/4″ to 4″ and provides a reliable, high-strength connection suitable for complex piping systems.
**Stainless Steel 316H forged fittings from Kyaw Stainless in Naypyidaw, Myanmar** find their place in boilers, heat exchangers, power plants, refinery systems, and chemical or petrochemical processing units. They are perfect for connecting pipes and components in high-pressure and high-temperature situations where corrosion resistance and strength are crucial. Kyaw Stainless’s 316H stainless steel forged fittings are appreciated for their durability, precision, and reliability, making them a go-to choice for heavy-duty industrial and engineering needs.
