Kyaw Stainless is a well-respected manufacturer and supplier located in Naypyidaw, Myanmar, specializing in top-notch Stainless Steel 309H Forged Fittings. These fittings are designed to excel in high-temperature and corrosive industrial settings. Renowned for their remarkable strength, durability, and resistance to oxidation, the Stainless Steel 309H Forged Fittings are crafted using cutting-edge forging techniques and adhere to strict quality standards. Kyaw Stainless guarantees precise dimensions, a superb surface finish, and dependable mechanical properties, making these fittings perfect for applications in power generation, petrochemicals, and furnaces where heat and corrosion resistance are crucial.
The composition of Stainless Steel 309H Forged Fittings includes about 22–24% chromium, 12–15% nickel, and a higher carbon content (up to 0.12%) compared to standard 309 grades, along with small amounts of manganese, silicon, and phosphorus, with iron making up the rest. This unique blend boosts their creep strength and oxidation resistance at high temperatures. These fittings boast a tensile strength of around 515 MPa and a yield strength of about 205 MPa, along with good ductility, toughness, and structural stability. Their elevated carbon content helps them retain strength and hardness even when exposed to prolonged heat.
| Specifications | ASTM A403 / ASME SA403, ASTM A182 & ASME SA182 |
| Forged Fittings Standards | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Buttweld Fittings Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Buttweld Fittings Size | 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated) |
| Forged Fittings Size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Buttweld Fittings Type | Seamless / Welded / Fabricated |
| Forged Fittings Type | Socketweld Fittings, Screwed-Threaded Fittings |
| Forged Fittings Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Buttweld Fittings Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Buttweld Fittings Thickness | Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS |
| Grade | C | Mn | Si | P | S | Cr | Ni | Fe | |
| SS 309H | 0.04-0.10 | 2.0 | 0.75 | 0.045 | 0.03 | 22.0-24.0 | 15.0 | 58.0-63.0 | |
| Grade | Tensile Strengtd ksi (min) | Yield Strength 0.2% ksi (min) | Elongation % | Hardness (Brinell) max |
| 309H | 40 | 30 | 40 | 217 |
Contact us to get a quick quote for your requirement.
Stainless Steel 309H Forged Fittings are widely used in high-temperature, corrosive environments due to their excellent resistance to oxidation and heat. Common applications include use in heat exchangers, boilers, gas turbines, and industrial furnace components, as well as in the petrochemical, chemical processing, and power generation industries. These fittings are ideal for connecting pipes, valves, and other equipment in systems that operate under extreme conditions. Their ability to withstand high temperatures and aggressive environments ensures durability and reliability in critical industrial applications requiring high-performance solutions.

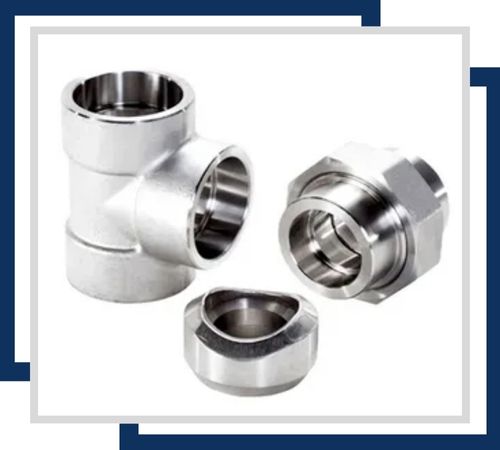

High-temperature applications. They typically come in sizes ranging from 1/4″ to 4″, designed to withstand pressures up to 3000 psi, offering a reliable connection in critical systems.

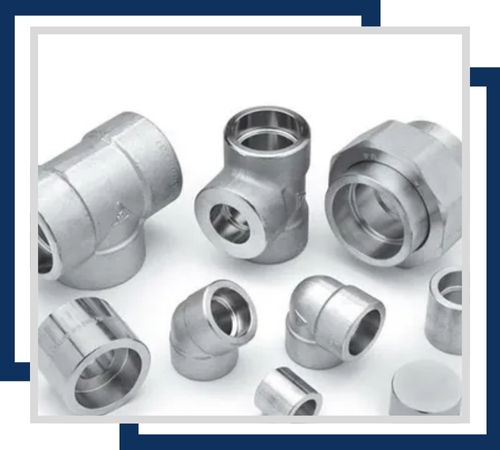

High-temperature environments. They are available in sizes from 1/8″ to 6″, featuring standard threading for easy assembly and disassembly, making them suitable for various piping systems.

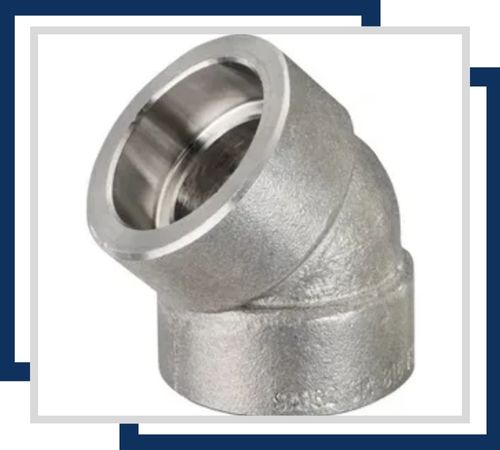

Outstanding corrosion resistance and is designed for directional changes in piping systems. It comes from 1/2″ to 4″, offering a durable solution for high-temperature and high-pressure applications.

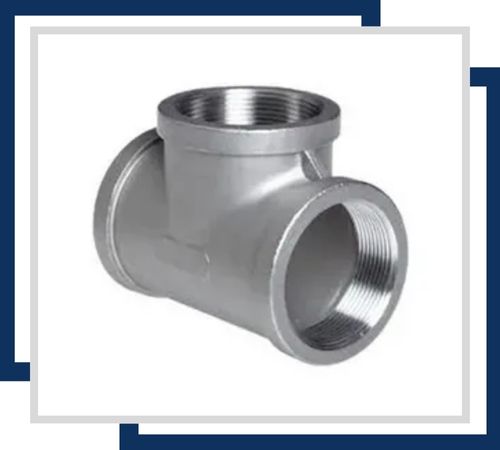

Superior corrosion resistance and creates branches in piping systems. Available in sizes ranging from 1/8″ to 6″, it ensures strong, leak-proof connections and is suited for high-temperature and pressure applications.

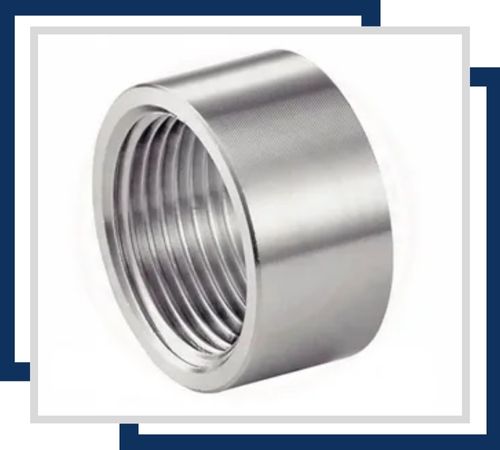

Excellent corrosion resistance and connects pipes of the same size. Sizes range from 1/8″ to 6″, designed for high-temperature environments, providing robust and secure fittings in piping systems.

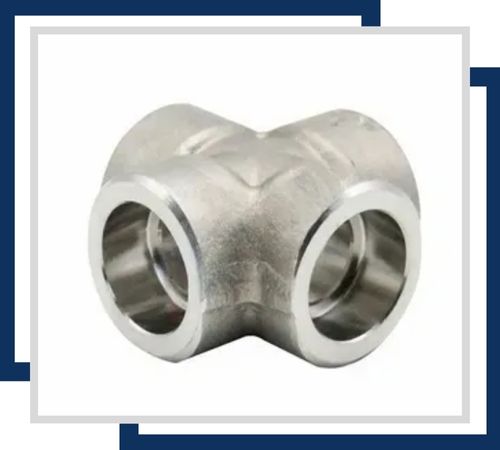

Excellent corrosion resistance and allows for four-way connections in piping systems. Available in sizes from 1/2″ to 4″, it is ideal for high-temperature applications and offers a durable solution for complex pipe layouts.
Stainless Steel 309H Forged Fittings find extensive use in high-temperature applications like furnaces, heat exchangers, boilers, and chemical processing equipment. They are also ideal for refineries, gas turbines, and power plants where components need to endure thermal cycling and corrosive environments. These fittings ensure secure, leak-proof connections in pipelines that transport hot gases or corrosive fluids. With outstanding weldability, machinability, and oxidation resistance, Stainless Steel 309H Forged Fittings promise a long service life, reliable performance, and minimal maintenance in the toughest industrial conditions.
