Home > Forged Fittings > Stainless Steel 304H Forged Fittings
Kyaw Stainless, a well-respected manufacturer and supplier located in Naypyidaw, Myanmar, specializes in high-quality Stainless Steel 304H Forged Fittings. These fittings are known for their exceptional strength, durability, and resistance to corrosion, making them perfect for tough industrial settings. Crafted with cutting-edge forging technology and top-notch raw materials, they ensure precise dimensions and outstanding mechanical performance. The Stainless Steel 304H, a high-carbon version of 304, offers improved tensile strength and better resistance to high-temperature creep, making it a great choice for applications that involve elevated temperatures. Kyaw Stainless provides a diverse selection of forged fittings, including elbows, tees, couplings, unions, and caps, all designed to meet international quality standards.
Stainless Steel 304H Forged Fittings mainly consist of chromium (18–20%), nickel (8–12%), and carbon (0.04–0.10%), along with controlled levels of manganese (≤2%), silicon (≤1%), phosphorus (≤0.045%), and sulfur (≤0.03%). The increased carbon content in 304H boosts mechanical strength and creep resistance at high temperatures while still offering excellent corrosion and oxidation resistance. In terms of mechanical properties, these fittings boast a tensile strength of around 515 MPa, a yield strength of 205 MPa, and an elongation of 40%. They retain impressive toughness and hardness, even when subjected to temperatures as high as 870°C.
| Standard | ASTM A182 / ASME SA182 |
| Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Type | Socketweld Fittings, Screwed-Threaded Fittings |
| Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 304H | 0.10 max | 2.0 max | 0.75 max | 0.045 max | 0.03 max | 18 – 20 | – | 8 – 10.5 | – |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.
Stainless Steel 304H Forged Fittings find extensive application in high-temperature and high-pressure resistant industries. They are suited for petrochemical, power generation, chemical processing, and oil and gas industries to ensure safe performance in harsh conditions. Stainless Steel 304H Forged Fittings are also utilized in boilers, heat exchangers, pressure vessels, and superheater parts because of their high strength and thermal resistance. They are also used in industrial furnaces, refinery equipment, and steam piping, providing good corrosion resistance and durability. They have a very strong forged design that provides leak-proof and s

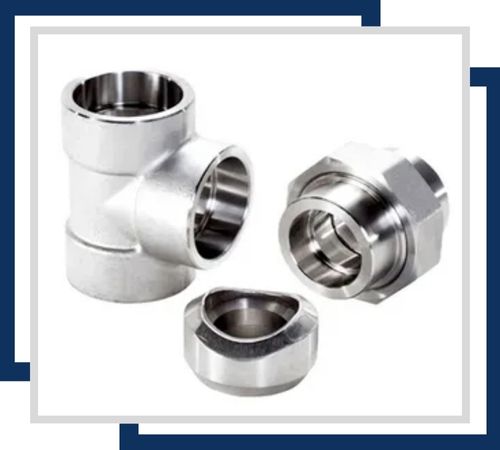

These fittings are available in sizes from 1/8″ to 4″ and offer reliable, leak-free connections in high-pressure systems. They are commonly used in petrochemical, power generation, and oil and gas industries.

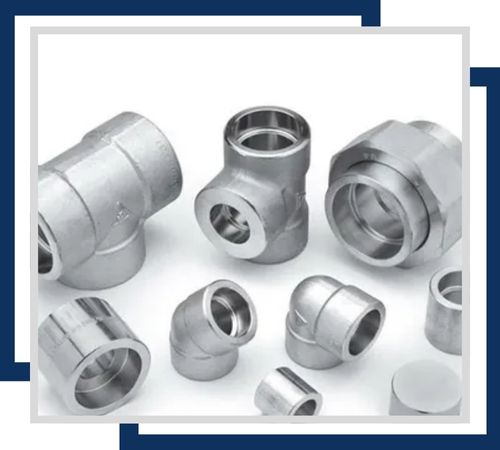

Threaded fittings, ranging from 1/8″ to 4″, provide ease of installation and maintenance. Suitable for low-pressure applications, they are widely used in plumbing, heating, and cooling systems.

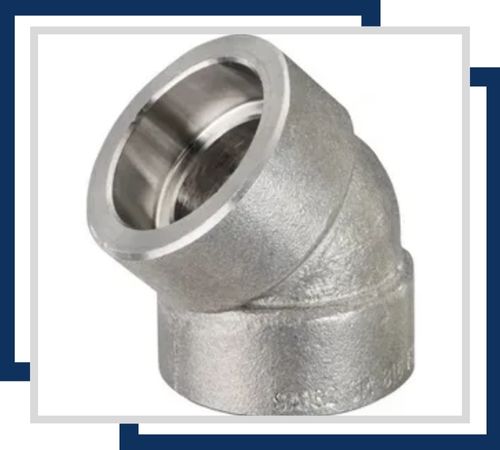

These elbows, available in sizes from 1/8″ to 4″, allow for smooth directional flow changes. They are ideal for piping systems requiring high-strength connections and reduced flow resistance.

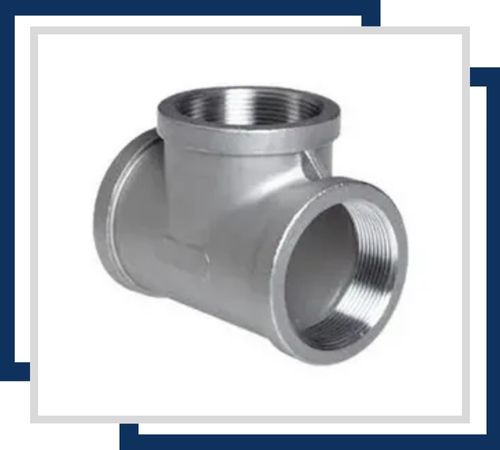

Threaded tees, in sizes ranging from 1/8″ to 4″, branch off the main line in a piping system. They provide reliable performance in various industrial and commercial applications.

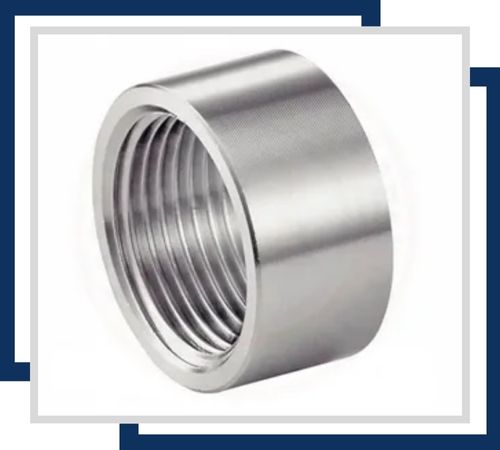

These couplings, available in sizes from 1/8″ to 4″, join two pipes or fittings. They offer easy assembly and disassembly, making them suitable for maintenance and repair work.

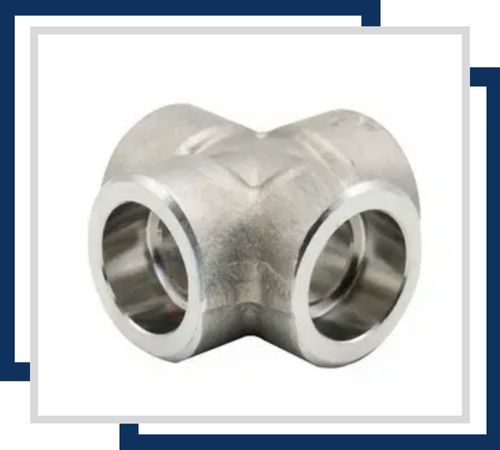

Socket weld crosses, ranging from 1/8″ to 4″, are designed to connect four pipes at a single junction. They are used in high-pressure applications where a strong, leak-proof connection is essential.
Stainless Steel 304H Forged Fittings are extensively utilized in industries that require piping components capable of withstanding high temperatures and pressures. They are particularly suited for boilers, heat exchangers, pressure vessels, superheaters, and power generation systems. Additionally, these fittings find applications in petrochemical plants, refineries, and marine environments where strength and corrosion resistance are crucial. Their excellent weldability, machinability, and ability to endure thermal stress make them ideal for heavy-duty and high-stress situations. With their long-lasting performance, they are a reliable choice for demanding applications.
