AWS Class ER317L MIG and TIG Filler Welding Wire and Rod

Home > Electrodes > AWS Class ER317L Mig & Tig Filler Welding Wire & Rod

AWS/ASME 5.14 ER317L MIG & TIG Filler Wire Manufacturer in Naypyidaw, SFA A5.9 ER317L MIG & TIG Filler Rod Supplier in Bago, Alloy ER317L Welding Mig & Tig Filler Wire Exporter in Yangon, UNS S31783 Mig and Tig Stick Filler Metal Trader in London, AWS ER317L Mig & Tig Filler Metal Rod & Wire Mandalay, AWS Class ER317L Metal Inert Gas (MIG) Welding London

Kyaw Stainless, based in Naypyidaw, Myanmar, has earned a solid reputation as a reliable manufacturer and supplier of high-quality stainless steel products, particularly in the realm of welding consumables like AWS Class ER317L MIG and TIG filler wires and rods. With a strong commitment to quality, precision, and adherence to international standards, Kyaw Stainless caters to industries that demand exceptional corrosion resistance and superior weld performance. Their ER317L MIG and TIG wires and rods are meticulously designed to ensure smooth weld deposition, impressive mechanical strength, and remarkable resistance to chemical corrosion and high-temperature oxidation, making them perfect for critical applications in tough industrial settings.

Stainless Steel Industrial ER317L MIG / TIG Filler Wire Price List in Monywa, Aws Class ER317L MIG /TIG Filler Welding Wire Manchester, Stainless Steel ER317L Mig & Tig Filler Wire Supplier in Naypyidaw, Myanmar, SS ER317L MIG & TIG Filler Metal Distributor in Monywa, AWS Class ER317L MIG & TIG Filler Metal Exporters Bago, UNS S31783 AWS Class ER317L MIG and TIG Filler Welding Wire and Rod Monywa

The AWS Class ER317L MIG and TIG filler wires and rods are primarily composed of iron, chromium (18–20%), nickel (11–15%), and molybdenum (3%), featuring low carbon content to minimize the risk of sensitization and boost corrosion resistance. They typically offer tensile strength in the range of 75–95 ksi, yield strength between 35–45 ksi, and elongation close to 40%, ensuring excellent toughness and durability. These filler metals are crafted to create strong, ductile welds that can withstand pitting, crevice corrosion, and stress-corrosion cracking, even in high temperatures or harsh chemical environments.

AWS Class ER317L MIG and TIG Filler Welding Wire and Rod Specifications

Classification	AWS A5.9, ER317L
Form	MIG spools, TIG cut lengths, Reels and Coils
Type Of Welding	Inert Gas Welding
Current	MIG-DCEP / TIG-DCEN
Diameters	.023”, .030”, .035”, .045”, 1/16”, 3/32”, 1/8”
Standard TIG straight lengths are available	36” (914 mm) or 39” (1000 mm) lengths. Other lengths available upon request.
AWS ER317L MIG & TIG Filler Metal Application & uses	Hardware tools Metallurgy Machinery Construction Shipbuilding Petroleum Chemical plant Power sector Gas Industry

AWS Class ER317L MIG and TIG Filler Welding Wire and Rod Chemical Composition

C	Cr	Ni	Mo	Mn	Si	P	S	Cu
0.03	18.5-20.5	13.0-15.0	3.0-4.0	1.0-2.5	0.30-0.65	0.03	0.03	0.75

AWS Class ER317L MIG and TIG Filler Welding Wire and Rod Mechanical Properties

Tensile Strength, kpsi:	83*
Yield Strength, kpsi:	60*
Elongation %:	42*

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Why Choose AWS Class ER317L MIG and TIG Filler Welding Wire and Rod from Kyaw Stainless?

Largest Inventory

Customer Support

On Time Deliveries

ISO Certified

Types of AWS Class ER317L MIG and TIG Filler Welding Wire and Rod

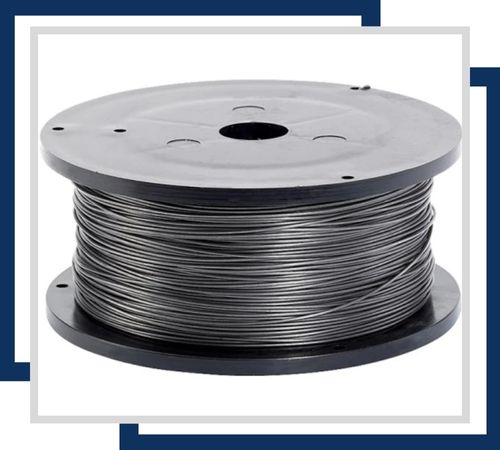

Stainless Steel ER317L MIG Filler Wire

Available in sizes such as 0.030″, 0.035″, and 0.045″ diameter. It offers excellent corrosion resistance and is ideal for welding stainless steels with high molybdenum content. Its low carbon content helps minimize carbide precipitation.

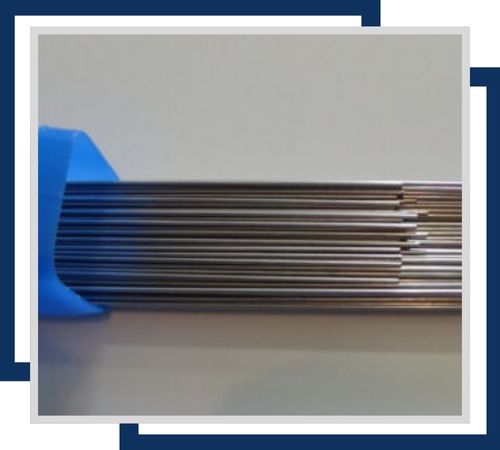

Stainless Steel ER317L TIG Filler Wire

Available in diameters like 1/16″, 3/32″, and 1/8″, this TIG filler wire provides superior corrosion resistance. It is suitable for welding similar stainless steel alloys and maintains a low carbon content to prevent carbide formation.

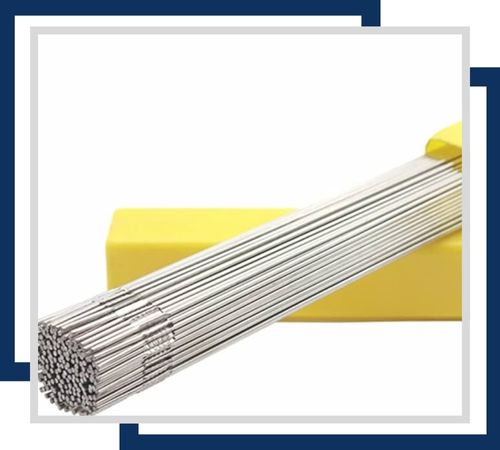

Stainless Steel ER317L TIG Filler Rod

Typically offered in sizes of 1/16″, 3/32″, and 1/8″ diameter, this filler rod is known for its excellent resistance to corrosion and high strength. It’s designed for use in TIG welding applications requiring enhanced resistance to pitting and crevice corrosion.

AWS Class ER317L TIG and MIG filler wire and rod are commonly applied in power generation, pulp and paper, chemical processing, and marine industries. They are best suited for welding piping systems, heat exchangers, stainless steel tanks, and structural parts subject to high temperatures and harsh chemicals. Due to their superior pitting, crevice corrosion, and intergranular attack resistance, they find applications where long-term strength is a requirement. With higher weldability and strength, these fillers provide rugged, dependable joints in demanding service involving high resistance to corrosion.

AWS A5.9 ER317L MIG & TIG Welding Filler Rod Manufacturer in Naypyidaw, AWS Class ER317L MIG & TIG Filler Metal Stockist in Bago, MIG & TIG Filler Rods London, MIG & TIG Filler Metal Stockist Mandalay, AWS Class ER317L Tungsten Inert Gas (TIG) Welding Manchester

AWS Class ER317L MIG and TIG Filler Welding Wires and Rods Uses

Widely utilized in industries where resistance to aggressive conditions is crucial, AWS Class ER317L MIG and TIG wires and rods are ideal for welding austenitic stainless steels in chemical processing plants, heat exchangers, pressure vessels, pipelines, and marine structures. They are also favored in the food processing, pharmaceutical, and petrochemical sectors, where hygienic and corrosion-resistant welds are vital. By using ER317L MIG and TIG wires and rods, manufacturers can achieve high-quality, durable welds that meet the demanding requirements of contemporary industrial applications.
